Viewing Results

To plot Y displacement:

In the Simulation study tree, right-click the Results folder and select Define Displacement Plot.
In the PropertyManager:
1. Under Display, make sure that Component is set to UY: Y displacement.
2. Under Display, set Units to in.
  The last solution step number appears in the Plot Step box by default.
3. Under Deformed shape, click True scale.
4. Click .

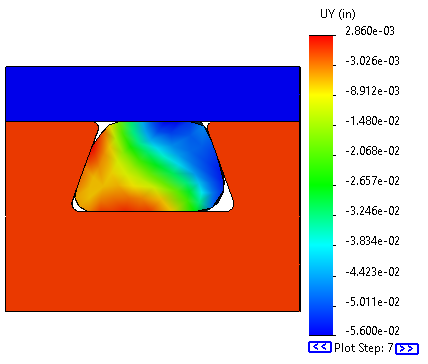

  The following plot is generated.
