Now add a group for the back of the box. Instead of mitered corners like the front of the box, make the two horizontal bodies butt up against the sides of the vertical bodies, and leave the ends of the vertical bodies open at the top and bottom.
-
In the graphics area, right-click and select Create New Group.

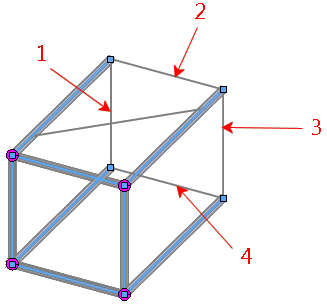

- Select each edge, in the order shown, for Path segments.
The results of selecting
End Butt1
in the next step can vary depending on the order in which you select the
segments. For consistent results in this lesson, select the segments in the
order shown.
-
Under Settings, select
Apply corner treatment and click
End Butt1
.
