Adding More Custom Properties

  1. Click TUBE, SQUARE 30 X 30 X 2.60<1>.
    The properties LENGTH, ANGLE1, ANGLE2, DESCRIPTION, and MATERIAL are already listed for TUBE, SQUARE 30 X 30 X 2.60<1>. DESCRIPTION is defined in the profile that you selected to create the structural member. The values for LENGTH, ANGLE1, and ANGLE2 are calculated by the software. MATERIAL is linked to the material applied to the body.

    LENGTH is the length of the structural member.

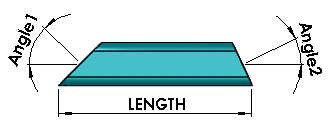

    Angle1 and Angle2 are the angles between the normal of the cut face and the centerline of the body.

  2. Add the custom property, PARTNUMBER, with the Value / Text Expression M1234-01.
  3. Repeat step 2 for the remaining cut list items, assigning the following values for PARTNUMBER:
    TUBE, SQUARE 30 X 30 X 2.60<2> M1234-02
    TUBE, RECTANGULAR 50 X 30 X 2.60<1> M1234-03
    SB BEAM 80 X 6<2> M1234-04
    You can display these part numbers in the cut list that you add to the drawing.
  4. Click OK.
  5. Click File > Save to This PC.
