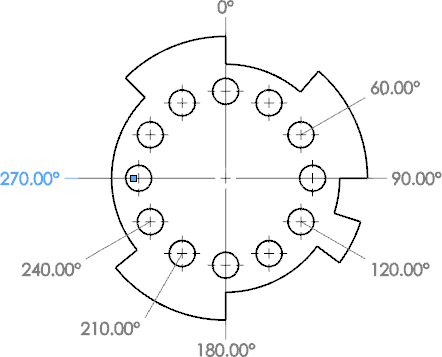

You can add more angular dimensions along the same angular running dimension.
To add more dimensions along the same angular
running dimension:
-
Right-click an angular running dimension that is on the model
and click Add To Running Dimension.
-
Select the vertices or center marks to dimension. As you select
each item, the dimension is placed in the view, aligned to the zero-degree
dimension.
-
Click
to exit the angular running dimension mode.
