Modifying Angular Running Dimensions

You can modify existing angular running dimensions.

1. Open a model that has angular running dimensions.
2. In the Dimension PropertyManager on the Leaders tab, select Display as chain dimension.

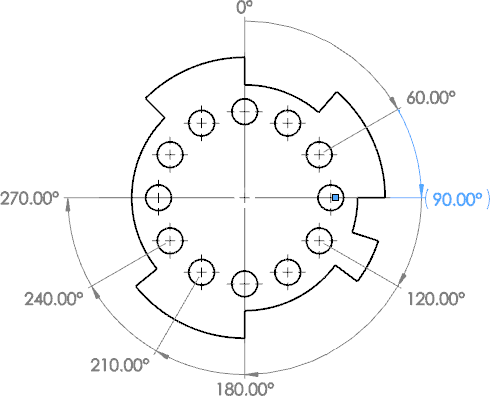

3. In the graphics area, right-click an angular running dimension that is on the model and click Break Alignment.
4. Drag the running dimension chain to move it.
   All the running dimensions on the chain move except for the dimension where the alignment is broken.



5. Right-click an angular running dimension that is on the model and click Display Options, then choose from these options:

   Option	Description
   Align Running Dimension	Aligns all the running dimensions.

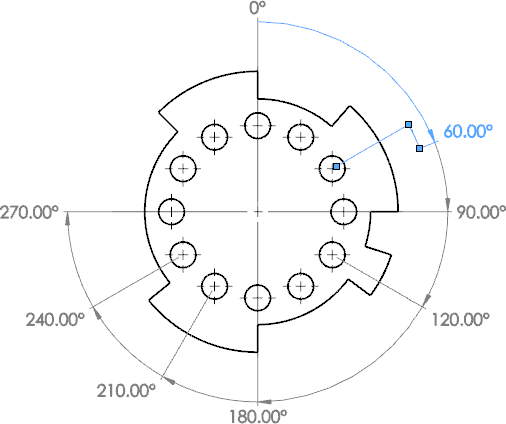

   Jog	Bends the leader line of a dimension and allows you to reposition the dimension.
   Re-Jog Running Dimension	Applies the automatic jogging to the running dimensions.

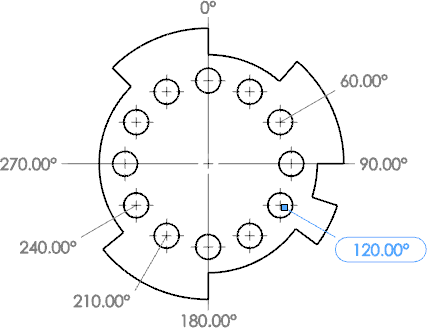

   Show Parentheses	Adds parentheses around the selected dimension.

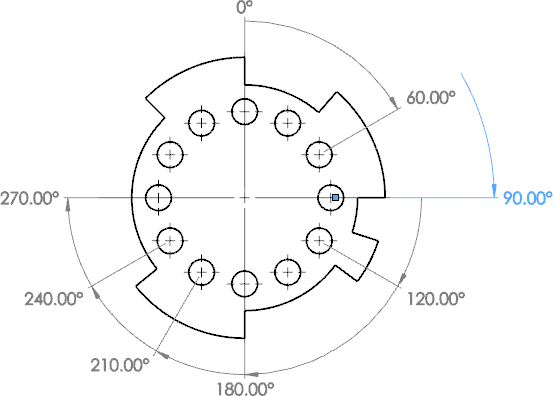

   Show as Inspection	Shows the selected dimension as an inspection dimension.
