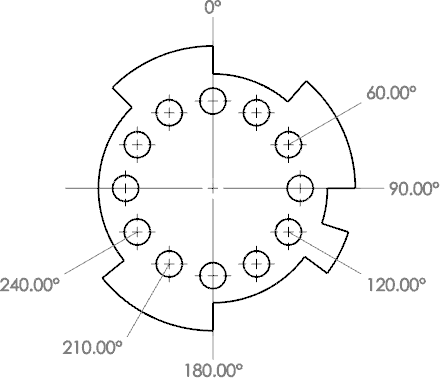

You can create angular running dimensions for an arc or circle in a drawing or sketch.
To create angular running dimensions:
-
Click Angular Running
Dimension
(Dimensions/Relations toolbar) or in a drawing view with an arc or circle.
-

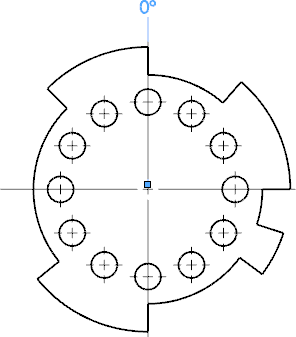

In the graphics area, select the center mark of the
model,
from which all others
are
measured, to be the base (the zero-degree dimension), and click again to place
the dimension outside the model.
-
Select the vertices or center marks to dimension. As you select
each item, the dimension is placed in the view, aligned to the zero-degree
dimension.
-
Click
to exit the angular running dimension mode.
