You can change the display style of existing angular running dimensions.
To change the display of angular running
dimensions:
-
Open
a model with
angular running dimensions.
-
In the graphics area, right-click an angular running
dimension.
In the Dimension PropertyManager on the
Leaders tab, choose from these options:
| Option |
Description |
|---|
| Display as chain
dimension |

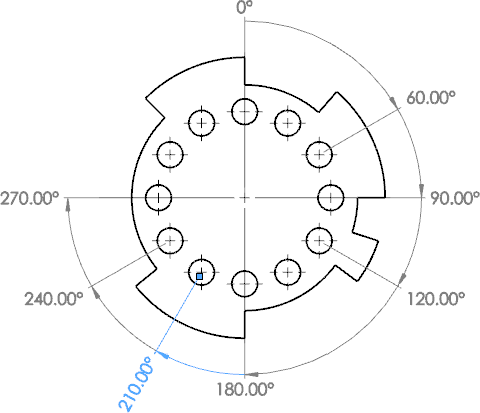

Displays angular running dimensions as chain
dimensions. |
| Run
bidirectionally |

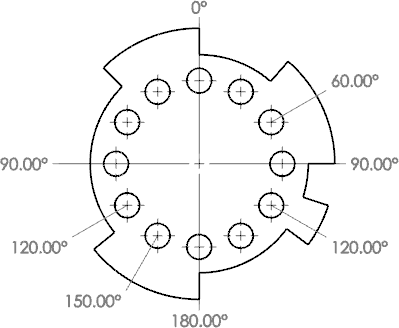

Causes all angular dimensions to run from the base
in the closest direction. No dimension is greater than 180° from the
base.
|
| Extension line extends
from center of set |

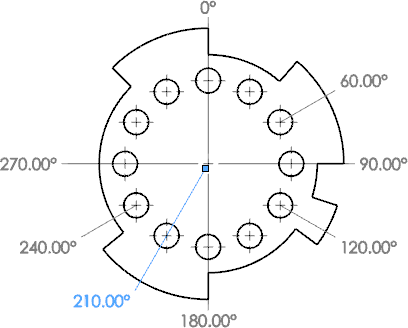

Extends the extension line to the center of the
dimension set.
|
| Custom Text
Position |
Changes text position for the selected dimension.
For example, click
to place the text inline.
|
