Accessing and Working with Favorite Profiles

You can add favorite profiles in the Primary Structural Member and Secondary Structural Member PropertyManagers for quick access.

To access and work with favorite profiles:

  1. Open a structure system part and click the Structure System tab.
  2. In the CommandManager, click Create Structure System.

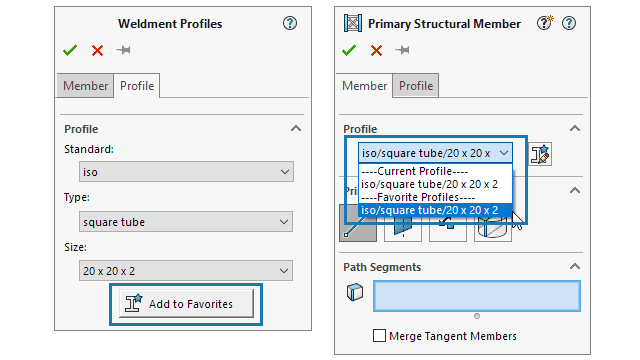

  3. In the Primary Structural Member PropertyManager, on the Profile tab, select the Standard, Type, and Size of the profile.
  4. Click Add to Favorites to add the profile as a favorite profile.

    as a suffix to the size indicates a favorite profile.

  5. On the Member tab, under Profile, select the profile in Favorite Profiles.
  6. Click to modify the list of favorite profiles.
  7. In the Favorite Profile List dialog box, select a profile and click the following:
    • OK. Accepts the changes, if any.
    • Delete. Deletes the selected profile.
    • Move Up or Move Down. Changes the sequence of profiles in the list.
