Creating Model Break Views in Assemblies

To create model break views in assemblies:

  1. Open install_dir\samples\whatsnew\parts\model break views\flow body.sldasm.
  2. Click Insert > Model Break View.

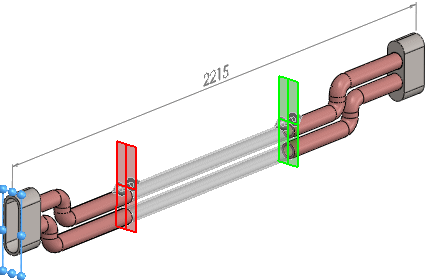

  3. In the graphics area, use the handles to move the red and green planes approximately as shown.

  4. In the PropertyManager:
    1. Click the Styles tab.
    2. Under Style, click Pipe Break .
    3. For Method, click Individual Breaks .
    4. Under Properties:

      • Set Gap to 100.
      • Move the Shape Intensity control about half way between the center and High.
      • Set Angle to 15º.

    5. Click .

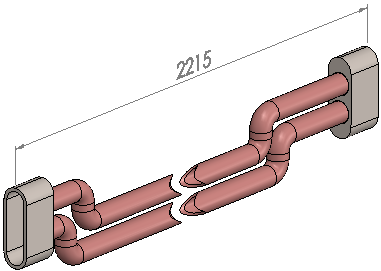

    Although the break is applied, the dimension, 2215, remains the same.
