Creating Model Break Views in Parts

To create model break views in parts:

  1. Open install_dir\samples\whatsnew\parts\model break views\brace strip.sldprt.
  2. Click Insert > Model Break View.

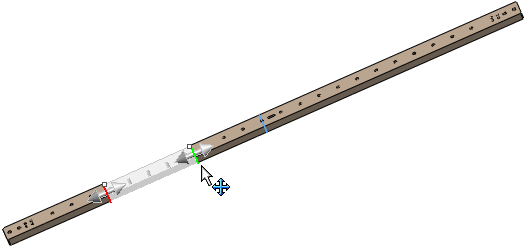

  3. In the graphics area, use the handles to move the red and green planes approximately as shown.

  4. In the PropertyManager, under Model Break Steps, click Apply.

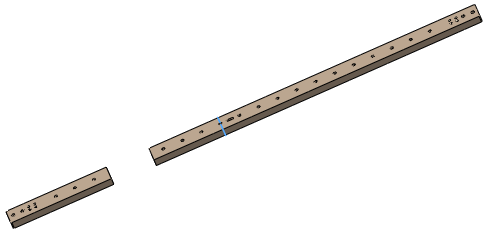

    A break appears where you placed the break lines.

  5. In the PropertyManager, under Model Break Steps, click Add Step.

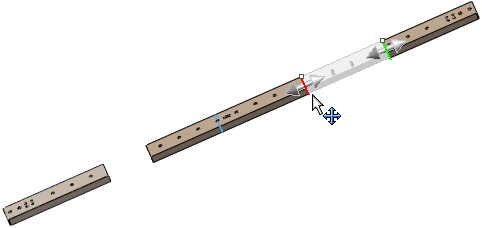

  6. In the graphics area, use the handles to move the red and green planes approximately as shown.

  7. In the PropertyManager:
    1. Click the Styles tab.
    2. Under Style, click Zig Zag Break .
    3. Click .

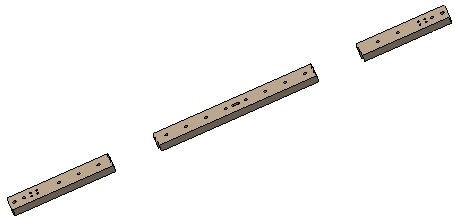

      A new derived configuration, Model Break View1, with two break steps, is added under the Default configuration.
