Using Datums in Auto Dimension Schemes

The DimXpert Auto Dimension Scheme tool lets you select existing datums for the reference features.

To use datums in Auto Dimension Schemes:

1. Click Auto Dimension Scheme (DimXpert toolbar) or Tools > DimXpert > Auto Dimension Scheme.
2. In the PropertyManager, under Datum Selection, select the primary datum symbol and optionally select the secondary and tertiary datum symbols to use when generating geometric tolerances.

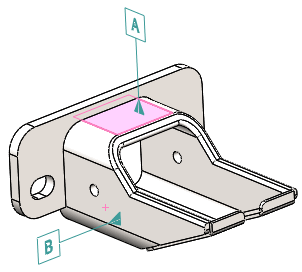

   You can select existing datums.
3. Set options.
4. Click .
