Bill of Materials Tab - Small Screen Layout

The Bill of Materials tab contains two columns.

To display the Bill of Materials tab:

In the file detail view, click the ellipsis, and click Bill Of Materials.

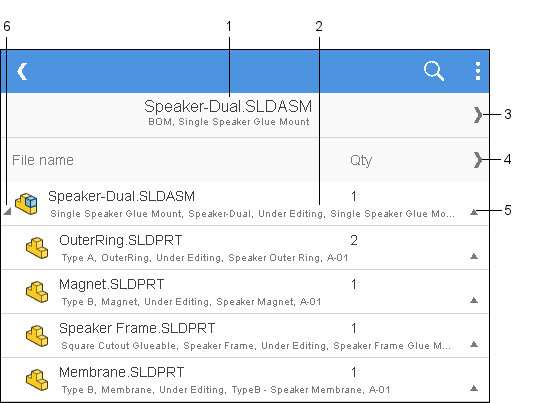

1 File name header Displays the file name, selected BOM name, and configuration or sheet name.
2 Row details Displays the values of two columns and comma-separated values of remaining columns.
3 Settings control Displays the selected BOM, view option, reference version, and configuration or sheet.
4 Columns control Lets you select the left and right columns to display.
5 Expand/collapse control for row Expands or collapses the row to display values of other columns.
6 Expand/collapse control Expands or collapses the indented, multilevel computed BOMs.
