Adding Hole Callouts in Section Views

You can apply hole callouts to cross-sectioned holes and slots.

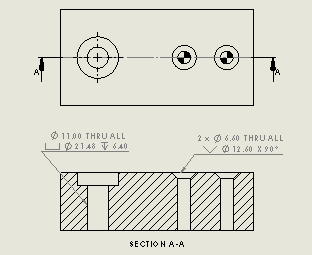

You can apply the callouts in section views, broken-out section views, and detail views. You can apply the callouts to these features:
  • Hole Wizard holes and slots
  • Advanced Holes
  • Holes created with Cut-Revolve
  • Holes and slots created with Cut-Extrude

To add hole callouts in section views:

  1. Click Hole Callout (Annotation toolbar) or Insert > Annotations > Hole Callout.
    The pointer changes to .
  2. Select any line segment of the cross-sectioned hole.

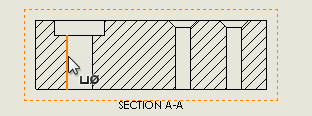

    • Click to select a side edge:

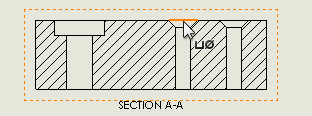

    • Shift + click to select a top or bottom edge:

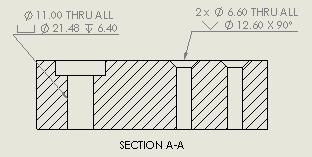

  3. Click to place the callout.
