Setting Custom Scales for Drawing Sheets

The scale list on the status bar includes an option to specify a custom scale for drawing sheets.

To specify custom scales for drawing sheets:

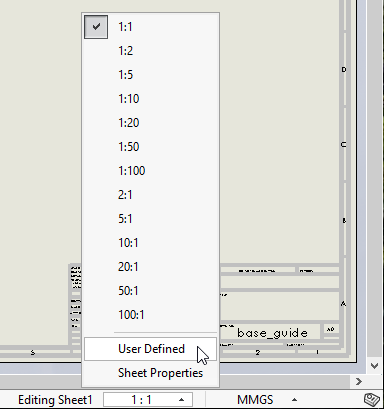

  1. In the status bar, click the scale.
  2. In the list, click User Defined.
  3. In the dialog box, enter a scale in the format x:x or x/x.
  4. Click OK.
You can also right-click the sheet and select Properties, then edit the values in Scale
