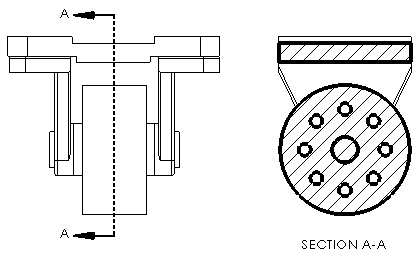

Emphasizing Outlines In section views, you can emphasize the outline of cut faces in compliance with ISO 128-50. Typically, this means setting the outline of the faces thicker than other model lines in the section view. Parent topicSection Views in Drawings Emphasizing the Outline in a Section View To emphasize the outline in a section view: Select a section view in a drawing. In the PropertyManager, under Section View, select Emphasize Outline. Click . Setting the Line Font for Emphasized Outlines To set the line font for emphasized outlines: In a drawing, click Tools > Options > Document Properties > Line Font. In the dialog box, in Type of edge, select Emphasized Section Outline. Set options. Click OK.
