There are multiple enhancements to bookmarks.
Benefits: Improved organization, new tools
and tooltips, and usability improvements help you work more efficiently.

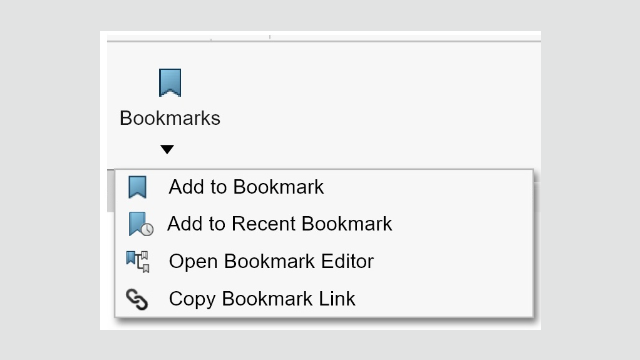

Reorganized Commands
New Tools
The Add to Recent Bookmark
tool adds a file or selected objects
to a Recent Bookmark. You can add a bookmark to
the
30
most-recent bookmarks. Select the object, click Add to Recent
Bookmark
, and select the recent bookmark to
which to add the objects.
The Copy Bookmark Link
tool creates a link to bookmarked
objects that you can share with others. Select components and click Copy Bookmark Link
to open the Bookmark List. Select a bookmark and click Copy Link. The system notifies you of the copy. You can then share that
link with others in 3DSwym, email, or other methods of communication.
Tooltips
When
you use the
Add to Bookmark
command,
in the
Select a Bookmark dialog box that appears,
tooltips list the full names of all the selected components that you
are bookmarking. In earlier releases, the full names were

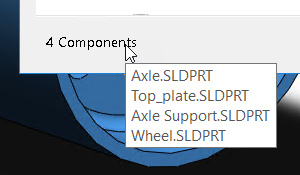

truncated. In
addition, if you add multiple files to a bookmark, for example from an assembly
FeatureManager design tree, the number of components appears at the bottom of the
Select a Bookmark dialog box. Hover over that text to reveal
the full names of the components.
Usability
When you click Open Bookmark
Editor and have already bookmarked files, the editor navigates to the
bookmarked location of the file. If the file has not been bookmarked, the editor
navigates to the last interacted bookmark location. In earlier releases, the Bookmark
Editor opened with no predetermined location.
In the
Open from 3DEXPERIENCE dialog box:

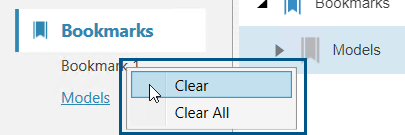

- On
the Recent tab, under the list of recently visited
bookmarks, you can right-click a bookmark and click Clear to clear that recent bookmark, or click
Clear All to clear all recent bookmarks.
- On the Recent tab, in the
upper-right corner, you can click Remove
and select to remove Unpinned items or
All Items from the tiled list of
recent items.
Bookmark Support for
File Locations
The number of File Locations that support bookmarks is enhanced. 3DEXPERIENCE users can save content for practically all File Locations to bookmarks, with a few exceptions.
All
File
Locations support bookmarks except for the following:
- Document Templates
- Referenced Documents
- Materials Databases
- Search Paths
- Default Save
Folder
- Inspection Default Export
Folder
For more information, see Adding Bookmarks for SOLIDWORKS File Locations.
