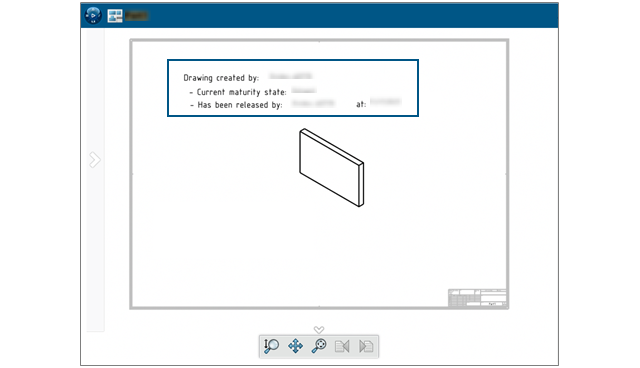

You can now view the annotations for the extended attributes of a
drawing in 3DPlay or 3DMarkup.
Benefits: You can
track the lifecycle of a drawing by viewing its properties in the preview.
In
earlier releases,
when
you changed the maturity state of a drawing to Released you were able to view its properties only through the
Properties page.
Now,
if you view the drawing in 3DPlay or 3DMarkup along with the PLM
properties,
the extended properties are also
visible.
The supported extended attributes are:
$PLMPRP.ea_releaseddate.1$PLMPRP.ea_releasedby.1$PLMPRP.ea_createdby
The annotations for the extended attributes are visible only if the
drawing is released using the Change Maturity
command in the Collaborative Lifecycle
app.
