Opening the Part

Browse to drive letter:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS version\samples\Simulation Examples\Design Scenarios\Hanger.SLDPRT) and open the file.

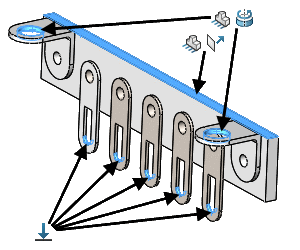

The Partial study includes:

A static study
Alloy steel for the material
An On Cylindrical Face fixture and an On Flat Face fixture as shown
Vertical forces applied on the central hanger and on the four side hangers
