Linking a Parameter to the Force on the Side Hangers

The Partial study includes the force definition applied to the side hangers. You define the force in terms of the FSide parameter.

In the Parameters dialog box, select FSide.
In the Partial study tree, under External Loads select Side_Hangers .
The force object and its component appear in the References boxes.
Click Apply.
An asterisk * appears under Linked to show that the FCenter parameter is now linked to a Simulation object.

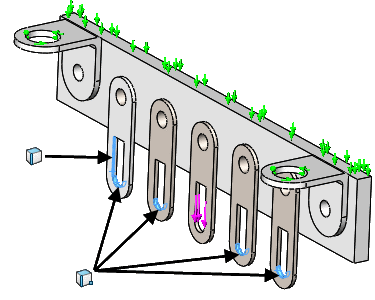

The FSide force is applied to each of the four side hangers.
Click OK.
