Viewing Results on Bottom Faces of the Model

  1. In the Simulation study tree, right-click the Results folder and select Define Stress Plot .
  2. In the PropertyManager, under Display:
    1. Select psi in Units .
    2. Select Bottom in Shell face .
  3. Under Property:
    1. Select Include title text and type a title for the plot, for example, von Mises Stress on the Bottom Faces of the Tank.
    2. Select Associate plot with name view orientation, then select *Isometric from the menu.
  4. Click PM_OK.gif.

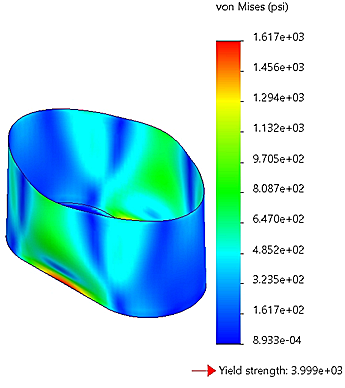

    Rename this plot to Bottom von Mises.

    Note that the stresses on top and bottom faces of the model are slightly different.
