Symmetry Restraints for Solid and Shell Models

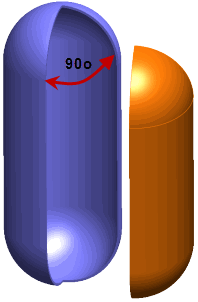

The axisymmetric pressure vessel shown in the figure is modeled as a solid and as a shell. Due to symmetry a quarter of the vessel is modeled.

In this lesson, you learn the following:

Applying symmetry fixtures for solid models
Applying symmetry fixtures for shell models
