Completing the Tooling Split

In the PropertyManager, the following appears:

1. Click Isometric (Standard Views toolbar).
2. Under Block Size:
   1. Set Depth in Direction 1 to 90.
   2. Set Depth in Direction 2 to 70.
   3. Select Interlock surface.
   4. Set Draft Angle to 3.

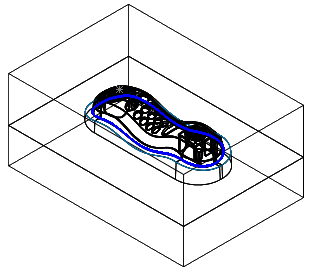

3. Click Wireframe (View toolbar).
4. Click to create the core and cavity blocks.
