Enhancing Mold Visibility

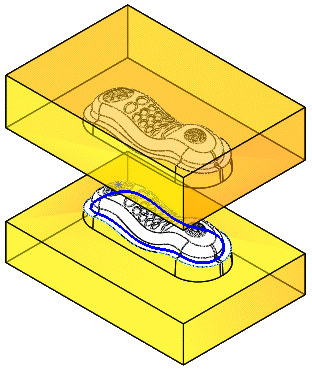

Use the Appearances PropertyManager to change the colors and to apply transparency to the core and cavity.

1. Near the bottom of the FeatureManager design tree, click Tooling Split1 > Appearances > Tooling Split1.
2. In the PropertyManager, under Color, select (orange) from the swatch.
3. Click Advanced and select the Illumination tab.
4. Move the Transparent amount slider approximately halfway to adjust the cavity transparency.

5. Click .
6. Click File > Save to This PC.
   You may need to click Shaded With Edges view and rebuild the model to see the color change.
