Creating Parting Surfaces

Parting surfaces extrude from the parting line and are used to separate the mold cavity from the core.

1. Click Parting Surfaces (Mold Tools toolbar).
2. In the PropertyManager, under Mold Parameters, select Perpendicular to pull.
3. Under Parting Surface, set Distance to 10.
4. Under Options, select Knit all surfaces and Show preview.
5. Click .

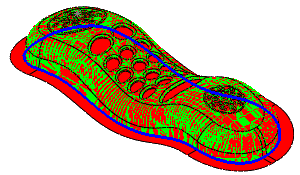

   The parting surface appears in Parting Surface Bodies , which is under Surfaces Bodies in the FeatureManager design tree.
