Finishing the Sketch for the Second Body

Now you finish the sketch so that it can be dimensioned.

1. Using the Line and Tangent Arc tools on the Sketch tab, create a sketch as shown.

2. Click Add Relation on the Dimensions/Relations toolbar, then add a Tangent relation between the tangent arc and the edge of the U-Bracket.

3. Click Circle on the Sketch tab.
4. Sketch the circle as shown. Make sure the centerpoint of the circle is concentric with the tangent arc.
   The pointer changes to when it is concentric with the arc.

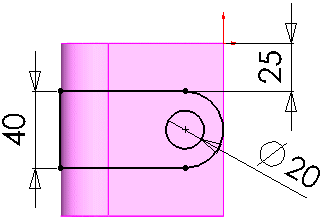

5. Click Smart Dimension on the Sketch tab, and dimension the sketch as shown.
