Inserting a View

Place a view of the assembly on the drawing sheet.

1. In the PropertyManager:
   1. Under Part/Assembly to Insert, select the assembly.
   2. Click .
   3. Under Orientation, for Standard views, select *Isometric .
   4. Under Display Style, select Shaded With Edges .
   5. Under Dimension Type, select True.

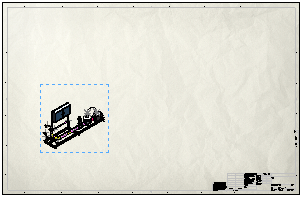

2. In the graphics area, click to place the view as shown.

3. Click .
