Manually Sketching a Route

Now create a route from the lower flange to the pipe that runs between the ball valve assembly and the tee fitting.

1. Zoom to the lower flange.

2. Move the pointer over the connection point (CPoint1) in the center of the flange.
3. Right-click CPoint1 and select Add to Route.

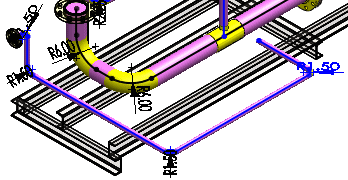

4. Click Line (Sketch toolbar) and sketch lines approximately as shown.
   Sketch the straight lines only - the sketch fillets are added automatically.




5. Press Esc to turn off the Line tool.
