In MySession, you can save individual parts, assemblies, or
drawings to the 3DEXPERIENCE platform without saving the entire
model.
Benefits: This
command
lets you save only the necessary components while controlling what gets uploaded to the
platform.
To
use Save
Selected:
- Open
an
assembly in SOLIDWORKS.

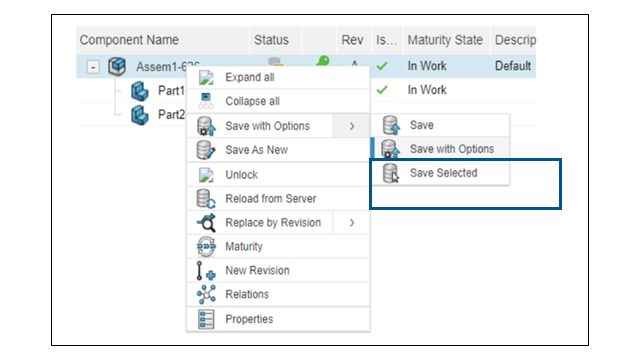

- In MySession, right-click
the
component
and select Save
Selected.
- In the Save dialog
box,
ensure
that the component is
selected.
- Click Save.
Limitations include:
- Saving Changes in Parts: Changes to individual parts made at the
assembly level are not saved unless you explicitly include those parts.
- Top-Level Assemblies: Use Save with
Options when saving a new top-level assembly to handle graphical
properties and flexible assemblies correctly.
