Jogging Extension Lines

You can right-click linear dimension extension lines and select Display Options > Jog to place a jog in the line.

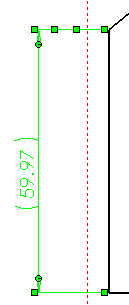

The dimension extension line after selecting Jog The dimension extension line after dragging a jog point
To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog.
  • Multiple Jogs for Dimensions and Callouts
    You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point.
