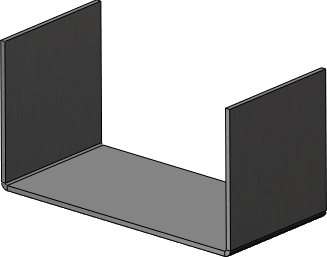

| Create a sheet metal part. |
 |
Select the edge near the endpoint at the start of the series of edges.
 |
 |
| Correct |
Incorrect |
|

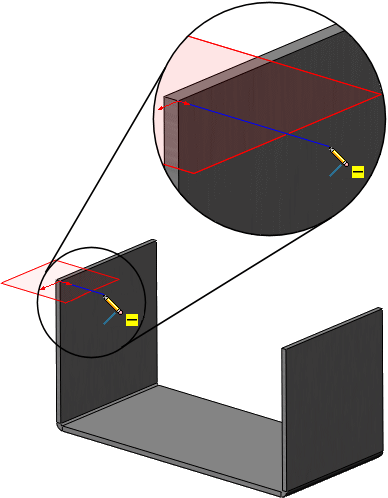

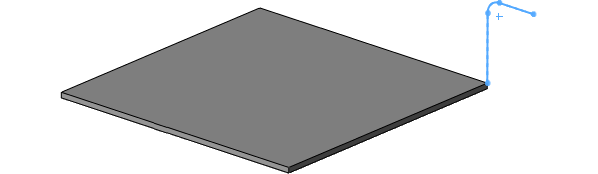

| Create a sketch for the miter flange. The sketch plane is normal to the first edge where the miter flange will be created.
|
 |

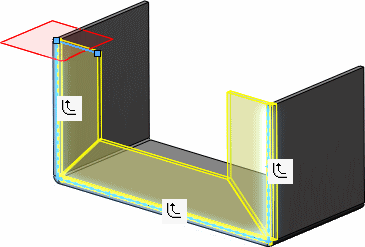

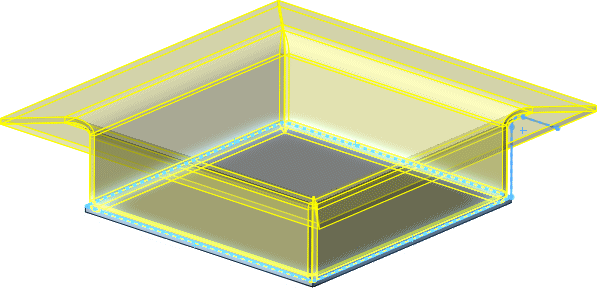

| Select edges for the miter flange in a continuous order. In this example, the left vertical edge, then the horizontal edge, then the right vertical edge were selected. Alternatively, you can click Propagate  to select all of the edges tangent to the selected edge.
|
 |

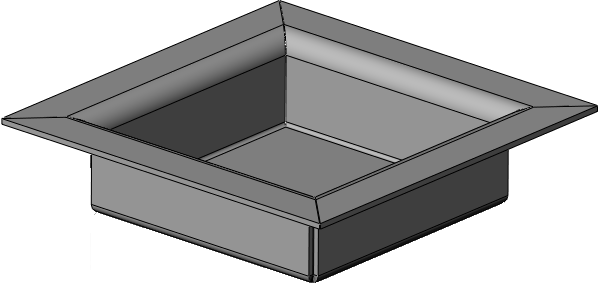

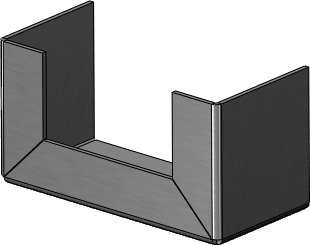

| The miter flange is complete. |
 |
