Creating a Corner Trim The Corner-Trim tool cuts or adds material to flattened sheet metal parts on an edge or a face. To create a corner-trim: Create a sheet metal part. Click Corner-Trim (Sheet Metal toolbar) or click Insert > Sheet Metal > Corner Trim. In the Corner-Trim PropertyManager, set the following under Relief Options:Select edges for Corner edges . Click Collect all corners. Select a value for Relief Type. Select or clear Centered on bend lines. Set a value for Radius or Side length. Select Ratio to thickness to set a value. Select Tangent to bend. Select Add filleted corners to set a value for Radius . Click . Parent topicBreak Corner/Corner-Trim Related tasks Creating a Break Corner Related reference Break Corner/Corner-Trim PropertyManager Adding or Subtracting Material in Flattened Parts To add or subtract material to a flattened part: In the Corner-Trim PropertyManager, set the following under Break Corner Options: Select Corner Edges and/or Flange Faces . Click Collect all corners. Collect all corners is only available in the flattened state. Select or clear Internal corners only. Select a Break type: Chamfer or Fillet . Set a value for Distance (Chamfer) or Radius (Fillet). Click . 1. External corner: cut material 2. Internal corner: add material
Creating a Corner Trim The Corner-Trim tool cuts or adds material to flattened sheet metal parts on an edge or a face. To create a corner-trim: Create a sheet metal part. Click Corner-Trim (Sheet Metal toolbar) or click Insert > Sheet Metal > Corner Trim. In the Corner-Trim PropertyManager, set the following under Relief Options:Select edges for Corner edges . Click Collect all corners. Select a value for Relief Type. Select or clear Centered on bend lines. Set a value for Radius or Side length. Select Ratio to thickness to set a value. Select Tangent to bend. Select Add filleted corners to set a value for Radius . Click . Parent topicBreak Corner/Corner-Trim Related tasks Creating a Break Corner Related reference Break Corner/Corner-Trim PropertyManager Adding or Subtracting Material in Flattened Parts To add or subtract material to a flattened part: In the Corner-Trim PropertyManager, set the following under Break Corner Options: Select Corner Edges and/or Flange Faces . Click Collect all corners. Collect all corners is only available in the flattened state. Select or clear Internal corners only. Select a Break type: Chamfer or Fillet . Set a value for Distance (Chamfer) or Radius (Fillet). Click . 1. External corner: cut material 2. Internal corner: add material

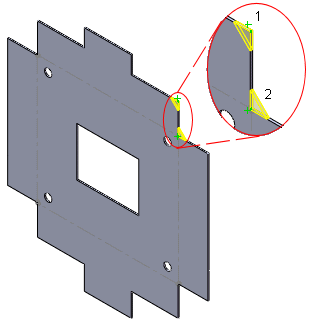

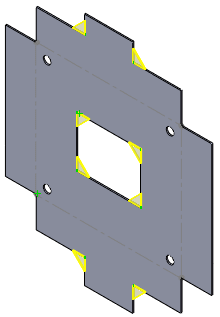

Adding or Subtracting Material in Flattened Parts To add or subtract material to a flattened part: In the Corner-Trim PropertyManager, set the following under Break Corner Options: Select Corner Edges and/or Flange Faces . Click Collect all corners. Collect all corners is only available in the flattened state. Select or clear Internal corners only. Select a Break type: Chamfer or Fillet . Set a value for Distance (Chamfer) or Radius (Fillet). Click . 1. External corner: cut material 2. Internal corner: add material
