Cable Management (2024 SP1)

Cable Management has a streamlined workflow that saves you time.

The enhancements include:
  • Replace cable is more flexible. You can replace a miscellaneous cable core type with a neutral cable core type with no system warnings.

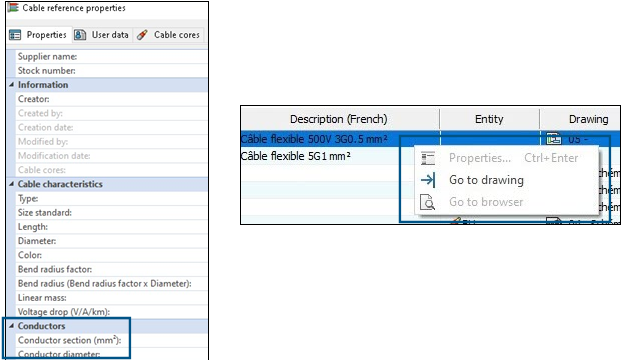

  • New commands are available in the shortcut menu. You can use:
    • Properties to view the properties of the selected cable.
    • Go to drawing to go to the location of the drawing, generally a line diagram from cable core item.
    • Go to browser to show the origin component of the cable core.
  • When you delete cables used in the scheme or line diagram, the wires associated with their cable cores are dissociated automatically.
  • The Cable Reference properties dialog box includes a new Conductors section with Conductor section and Conductor diameter listed under it. The section Characteristics is renamed as Cable characteristics.
