Terminal Strip Drawings (2024 SP3)

You can organize wires and cables by destination part. This makes terminal strip layouts tidier and more organized.

Enhancements:

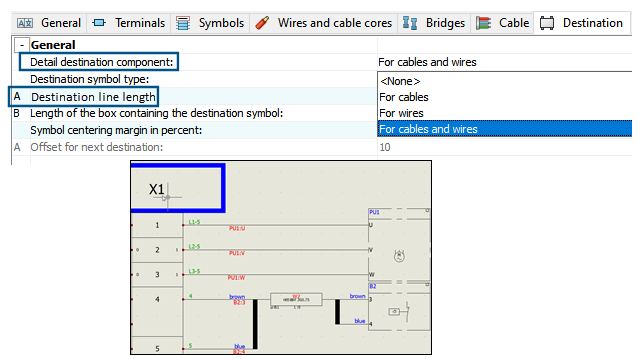

  • The option Detail cable destination is renamed to Detail destination component. It has the following options:
    • None
    • For cables
    • For wires
    • For cables and wires
    This option displays a box containing the destination symbol for cables and wires. For successive wires associated with the same component, the software draws only one component.
  • A Destination cable core length is renamed to A Destination line length. This option applies to wire components too.
  • In the Terminal strip editor dialog box, a new column appears between Destination and Cable. It contains the mark of the component terminal where the wire is connected.
