Viewing Normal Stresses

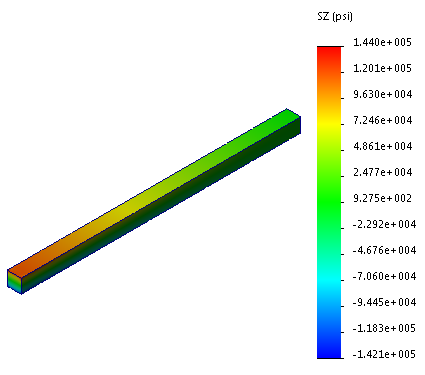

In the Simulation study tree, right-click the Results folder and select Define Stress Plot .
In the PropertyManager:
1. Under Display, select SZ: Z Normal Stress in Component .
2. Select psi in Units .
3. Clear Deformed shape.
Click the Chart Options tab.
Under Position/Format, select scientific for Number Format and 3 for No of Decimals .
Click .
