You can plot angular deformation results with respect to a given axis in
units of degrees or radians.

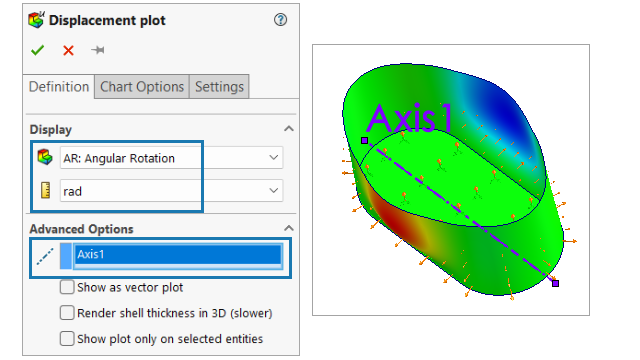

In the Displacement
plot PropertyManager, select AR: Angular
Rotation under Display and an
axis under Advanced Options.
This is available for static and nonlinear
static studies. Only studies with all solid, shell, or beam meshes support the display
of angular rotations. Mixed-mesh studies are not supported. The creation of time-history
plots of angular rotations for nonlinear studies is not supported.
