Hide and Show Bodies

With multibody parts, you can hide or show surface or solid bodies using View > Hide/Show Bodies.

To hide and show bodies:

Open a document containing multiple surface or solid bodies.
Click View > Hide/Show Bodies.
In the PropertyManager, under Hidden Bodies, select bodies in the graphics area for Surface/Solid Bodies .

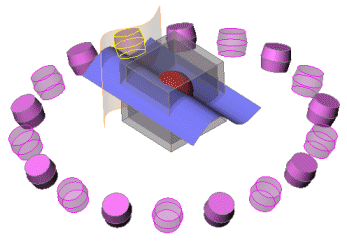

When you select a body, it becomes translucent in the graphics area.
Click .
The entities you selected remain hidden.
Click View > Hide/Show Bodies again to open the PropertyManager.
Select the translucent bodies in the graphics area. You can select some or all of the translucent bodies.
Click .

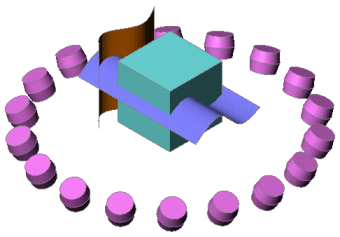

The translucent entities you selected are visible again.

You can also use the shortcut menu to hide a surface without using the PropertyManager to preview the entities you select. To show the hidden surface again, click View > Hide/Show Bodies , select the translucent bodies in the graphics area and click .
- You can still select from the FeatureManager design tree to Hide or Show, but it does not open the PropertyManager or display the model in a translucent state.
- To hide or show an assembly component, click Hide/Show Components on the Assembly toolbar.
