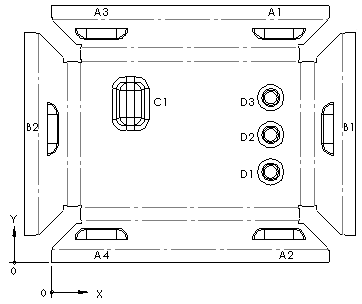

You can insert a punch table in the flat pattern view of sheet metal parts in drawings.

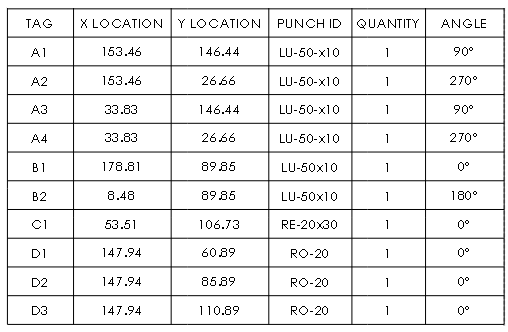

Punch tables contain the form features and library features used in sheet metal bodies including:
| Tag |
Annotation added to each punch feature in the flat pattern |
| X Location |
Distance from X-axis to the point of insertion of the tool |
| Y Location |
Distance from Y-axis to the point of insertion of the tool |
| Punch ID |
Property of the forming tool/library feature used in the component |
| Quantity |
Number of times form/library feature is used in the flat pattern |
| Angle |
Angle between X-axis and the tool |
