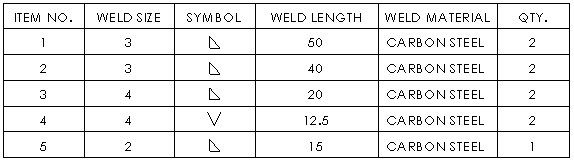

You can insert weld tables in drawings.
Use weld tables to summarize weld specifications including:
- Weld quantity
- Weld size
- Weld symbol
- Weld length
- Custom weld bead properties such as weld material, process, mass, cost, and time
After customizing a weld table, you can save it as a template for future use. For details, see Table Templates.
The weld table dynamically updates when the corresponding weld beads or weld symbols change. If you update a value in the weld table and maintain the link to the weld bead or symbol, the weld bead or symbol updates in the model.
