SOLIDWORKS eDrawings Viewer in the Preview Tab

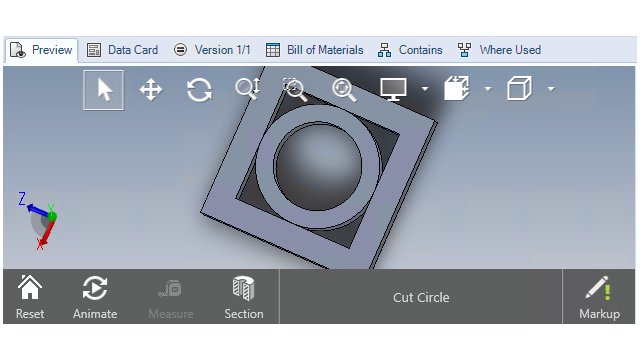

All of the view functions in eDrawings® Viewer are available in the Preview tab of SOLIDWORKS PDM File Explorer.

Option Description
View SOLIDWORKS eDrawings toolbar Click Display > Options > Show full UI in SOLIDWORKS preview.
View markup associated to a file Displays a markup if the selected file contains a markup.
View eDrawings preview for SOLIDWORKS files Click Display > Options > Show bitmap for SOLIDWORKS files. On the Preview tab, click Load Preview. Previously, you had to click the thumbnail preview image to access the eDrawings preview.
