Other SOLIDWORKS PDM Enhancements

SOLIDWORKS PDM 2022 has new APIs and other improvements.

  • You can save a card that has more than 2000 characters in an alias in an input formula.

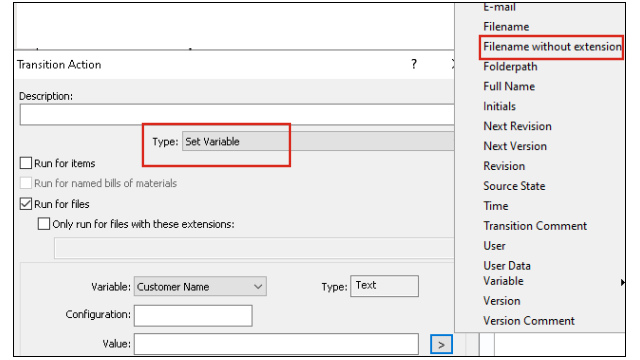

  • In the Transition Action dialog box, when you specify Type as Set Variable, you can define the value of the selected variable as Filename without extension.
SOLIDWORKS PDM APIs are available to:
  • Define Next counter value for serial numbers in the Administration tool.
  • Add or modify some of the user settings.
  • Edit the name of a named BOM.
  • Select files to destroy from the deleted files.
