With SOLIDWORKS Routing, you can create a special type of subassembly that builds a path of pipes, tubes, or electrical cables between components.
In the

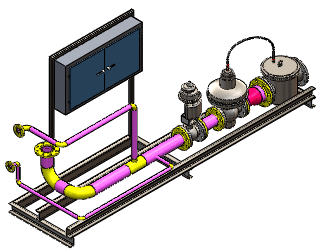

Pipe and Tube Routes lesson, you create the pipe and tube routes shown below. The lesson includes:
- Customizing a routing template
- Adding parts to the Routing Library
- Creating route paths by various automatic and manual methods
In the

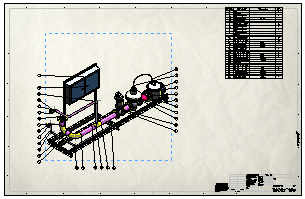

Route Drawings lesson, you create a drawing for the above assembly. The drawing includes:
- A bill of materials
- Pipe length information
- Auto balloons
You must have SOLIDWORKS Routing (available in SOLIDWORKS Premium or separately) to run this tutorial.
