Multi-jog Leaders
You can use multi-jog leaders in drawings to create leaders with as
many bends as required, or to create simple arrows or block diagrams.
For example, a multi-jog leader can point a note to an entity in a drawing
that is difficult to reach with a straight or bent leader. Some items
to note about multi-jog leaders are as follows:
You can attach multi-jog leaders to annotations,
sketch entities, or model edges or faces, or you can insert a leader without
attaching it to anything.
A preview of each segment of the leader appears
as you move the pointer.
You can add jog points and branches to multi-jog
leader segments.
You can start a multi-jog leader anywhere on a
drawing sheet. You can end a leader anywhere on a drawing sheet by double-clicking.
When a leader is not attached to an entity, the arrow at the endpoint
follows the Unattached option
in Document
Properties - Annotations. You can manually select a different
arrow at the endpoint with a shortcut menu.
You can add multi-jog leaders as you create the
annotations or after you create them.
To create a multi-jog leader:
To add a multi-jog leader while
creating an annotation:

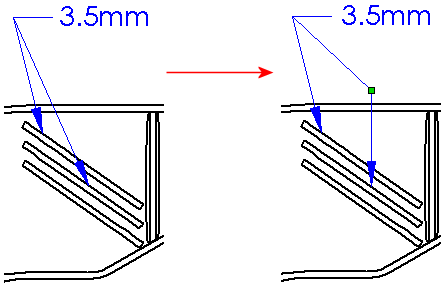

To add a jog point:
To add a branch:
To change the arrow at an endpoint:
To change a straight leader to
a multi-jog leader:
To delete a multi-jog leader:
To delete a jog point:
To delete a branch:
