Folder Prefixes (2024 SP1)

In a model, prefixes show in a folder name when the folder contains over defined components, under defined components, and only fixed components.

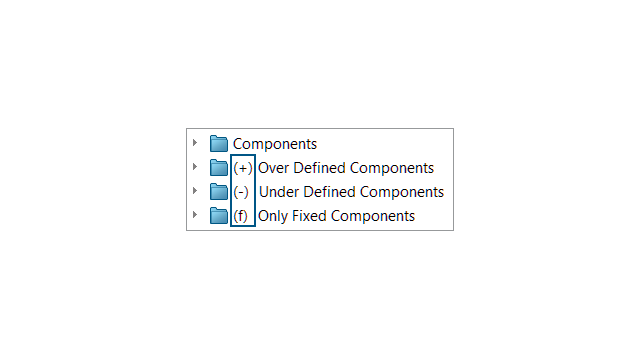

Folder prefixes:
(+) Contains at least one over defined component.
(–) Contains at least one under-defined component.
(f) Contains only fixed components.

If a folder contains a component that is not fixed, the fixed prefix does not show in the folder name.

Prefixes do not show for folders that contain only well-defined components.

To view a folder prefix:
  1. Open a model that has an under-defined component.
  2. In the FeatureManager design tree, right-click an under-defined component and click Add to New Folder.
  3. Enter a folder name and click Enter.

    The under-defined prefix shows in the folder name.
