You can use
interference detection between surface bodies for assemblies and multibody
parts.
Benefits: You can find and fix interference issues for
surface bodies.
To detect interference between surface
bodies:
- Open a model or multibody part that has an interference between
surface bodies.
- Click
.
- In the PropertyManager, under Options, click Include surface
bodies.
- Under Selected Components, click
Calculate.
- Under Results, scroll to
the end for the surface body results.

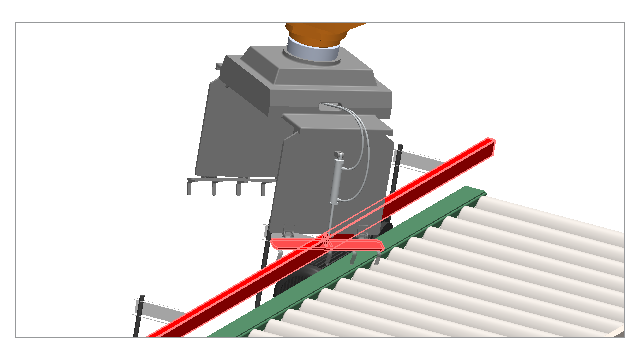

When you select the
surface interference, the intersecting faces appear in red in the graphics
area.
