Selecting an Origin for a New Subassembly (2024 SP2)

You can select an origin when creating a subassembly.

Origin options:
Origin of parent assembly Uses the origin of the parent assembly as the origin of the subassembly.
Origin of the first selected component Uses the origin of the first selected component as the origin of the subassembly.
Point or vertex Uses a point or a vertex as the origin of the subassembly.
To select an origin for a new subassembly:
  1. Open a model and select a component.
  2. Right-click the selected component and click Form New Subassembly.

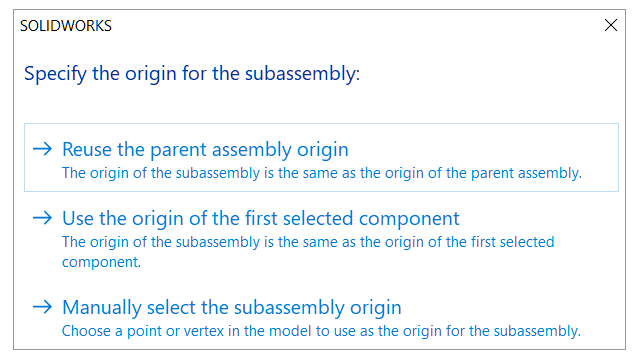

  3. In the dialog box, select an option for the origin of the subassembly.
