Propagating Electrical Properties from 2D to 3D

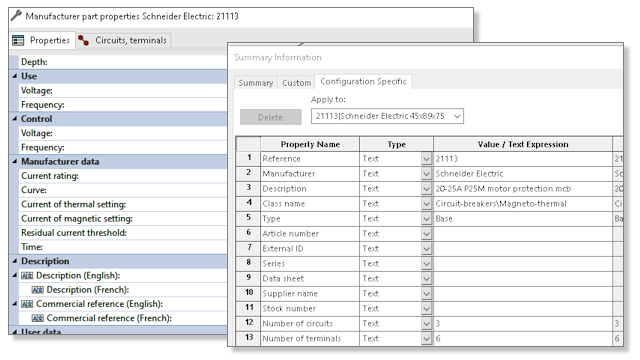

For each component, you can propagate the electrical properties to the 3D part or assembly.

If you modify the electrical properties in the 2D application, you must click Update BOM Properties in the SOLIDWORKS Electrical menu, to update the 3D part properties.

You can use these properties to complete tables like the Bill of Materials.
