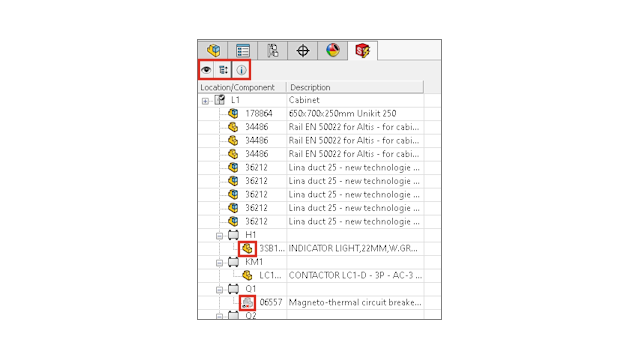

In SOLIDWORKS Electrical 3D, the Electrical Manager tree displays the list of components in the
electrical project.
In the Electrical Manager tree, an icon before each component indicates
whether the component is associated or not associated with an assembly or a 3D part.
Selecting a component in the tree highlights the associated assembly or 3D part in the
graphical area.
Selecting the location from the Electrical
Manager highlights the assembly in the Feature Manager tree if the corresponding assembly is inserted in the
main assembly.
The
Electrical
Manager lets you:
- Show or hide inserted components
- Expand or collapse all tree nodes
