Variable Mapping - INI files

You can map variables to read and write attribute values found in .ini files.

Common Extensions INI
Property Mappings
Block name Attribute name
The block names are custom defined. The attribute names are custom defined.
Use the following guidelines when mapping to sections within an ini file:

1 Block name

Use the section header (without brackets) as block name.

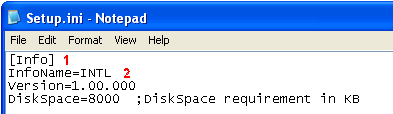

In this example, the block name is Info.
2 Attribute name

Use the ini attribute (the label before the equal sign) as the variable attribute.

In this example, using the attribute name InfoName returns the value INTL.

In the example, using the block name Info and the attribute name Version returns the value 1.00.000.
